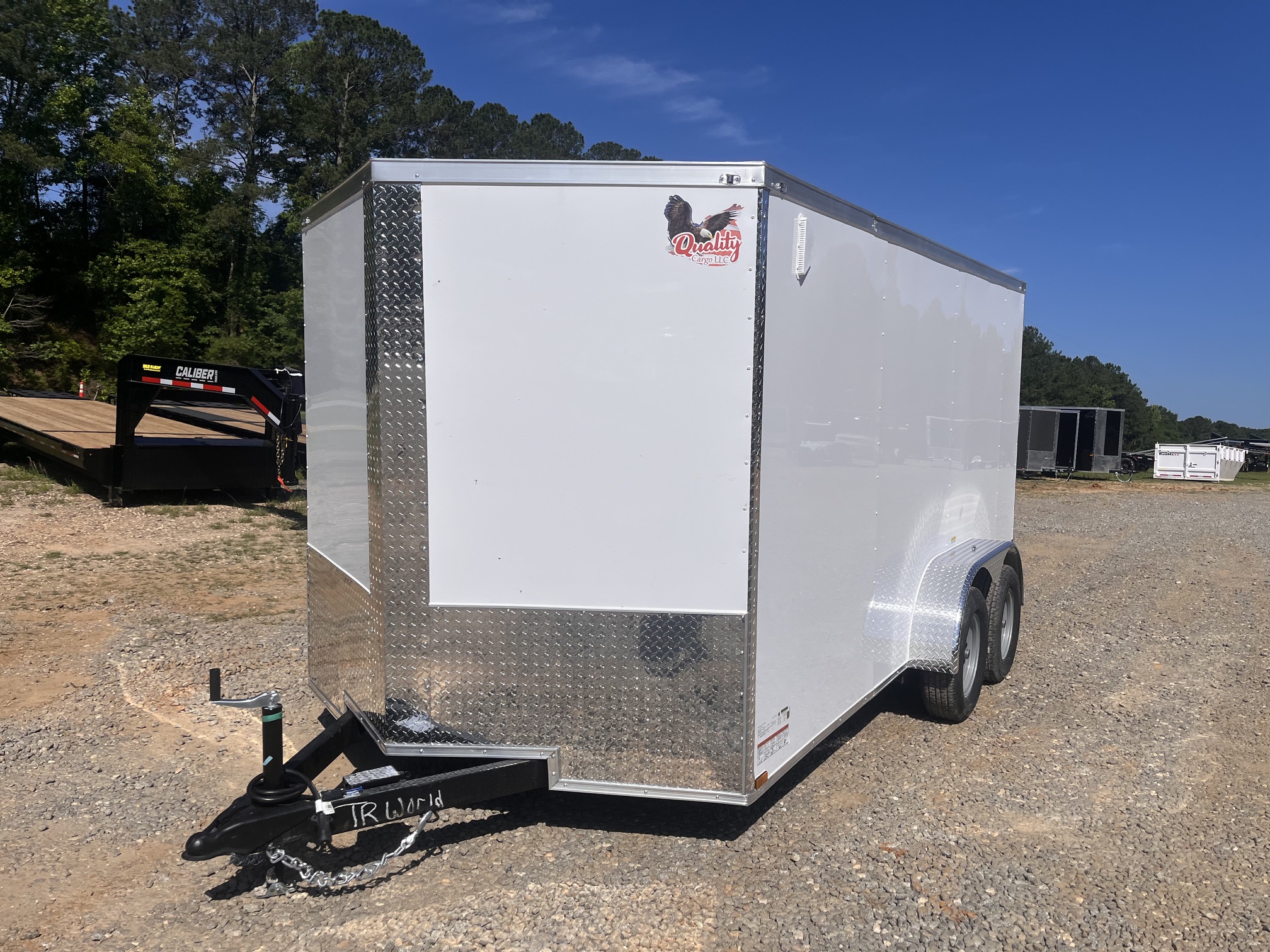

7×14 Tandem Axle Commercial Enclosed Cargo Trailer – .080 Composite Semi-Screwless Skin (+9″ Extra Height / 84″ Interior)

• GVWR: 7,000 lbs (Dual 3,500 lb Axles)

• Configuration: 7′ Wide x 14′ Long Tandem Axle (7×14 TA)

• Upgraded Interior Height: 84″ (7’0″ Ceiling w/ +9″ Additional Height)

• Exterior Finish: .080 Composite Metal (Semi-Screwless Exterior)

• Chassis Construction: 2″ x 4″ Structural Steel Tube Mainframe

• Framing: 16″ On-Center Floor Crossmembers & Wall Uprights

• Running Gear: Tandem 3,500 lb 4″ Drop Spring Axles w/ EZ-Lube Hubs

A high-clearance, commercial-grade 7-wide tandem-axle hauler engineered for contractors, landscapers, mobile service technicians, and powersports owners who need true stand-up walk-in headroom and secure payload stability. Upgraded with an additional +9″ of extra interior height, this trailer provides an expansive 84″ (7’0″) ceiling, allowing duck-free upright movement, elevated vertical racking, and taller drive-in clearance for lifted UTVs, side-by-sides, and tall commercial equipment.

Built around a rigid 2″ x 4″ structural steel tube mainframe reinforced with stout 16″ on-center floor crossmembers and wall uprights, this chassis resists road flex, twist, and corner racking under heavy, shifting equipment loads. The exterior is wrapped in heavy-gauge .080 composite semi-screwless metal set against an aerodynamic V-nose wedge, delivering a dead-flat, wrinkle-free finish that eliminates highway panel flutter while cutting wind resistance for maximum towing stability.

Key Specifications & Commercial Features

• Upgraded +9″ Interior Height (84″ / 7’0″ Ceiling): Expands the vertical clearance from the standard 75″ to a full 84″ (7’0″) of walk-in height, providing upright duck-free comfort, expanded overhead storage, and taller drive-through clearance for high-profile machines.

• Tubular Frame & 16″ O.C. Commercial Skeleton:

  • Mainframe: Heavy-duty 2″ x 4″ structural steel tube main frame rails engineered to resist torsion and highway stress.

  • Floor Structure: 16″ on-center floor crossmembers supporting commercial 3/4″ plywood flooring sealed and painted underneath for long-term moisture and rot defense.

  • Wall & Roof Framing: 1″ x 1-1/2″ structural steel tube wall uprights on 16″ on-center spacing lined with premium 3/8″ plywood walls, paired with 24″ on-center steel tube roof bows.

• Rigid .080 Composite Semi-Screwless Exterior:

  • Upgraded .080 composite metal skin installed semi-screwless for maximum impact resistance, thermal stability, and an ultra-smooth profile ready for custom branding.

  • Seamless, weather-tight Galvalume roof engineered to prevent joint leaks and eliminate standing water pooling.

  • Smooth aluminum teardrop fenders accented with integrated clearance lights and high-visibility rear LED strip tail lights.

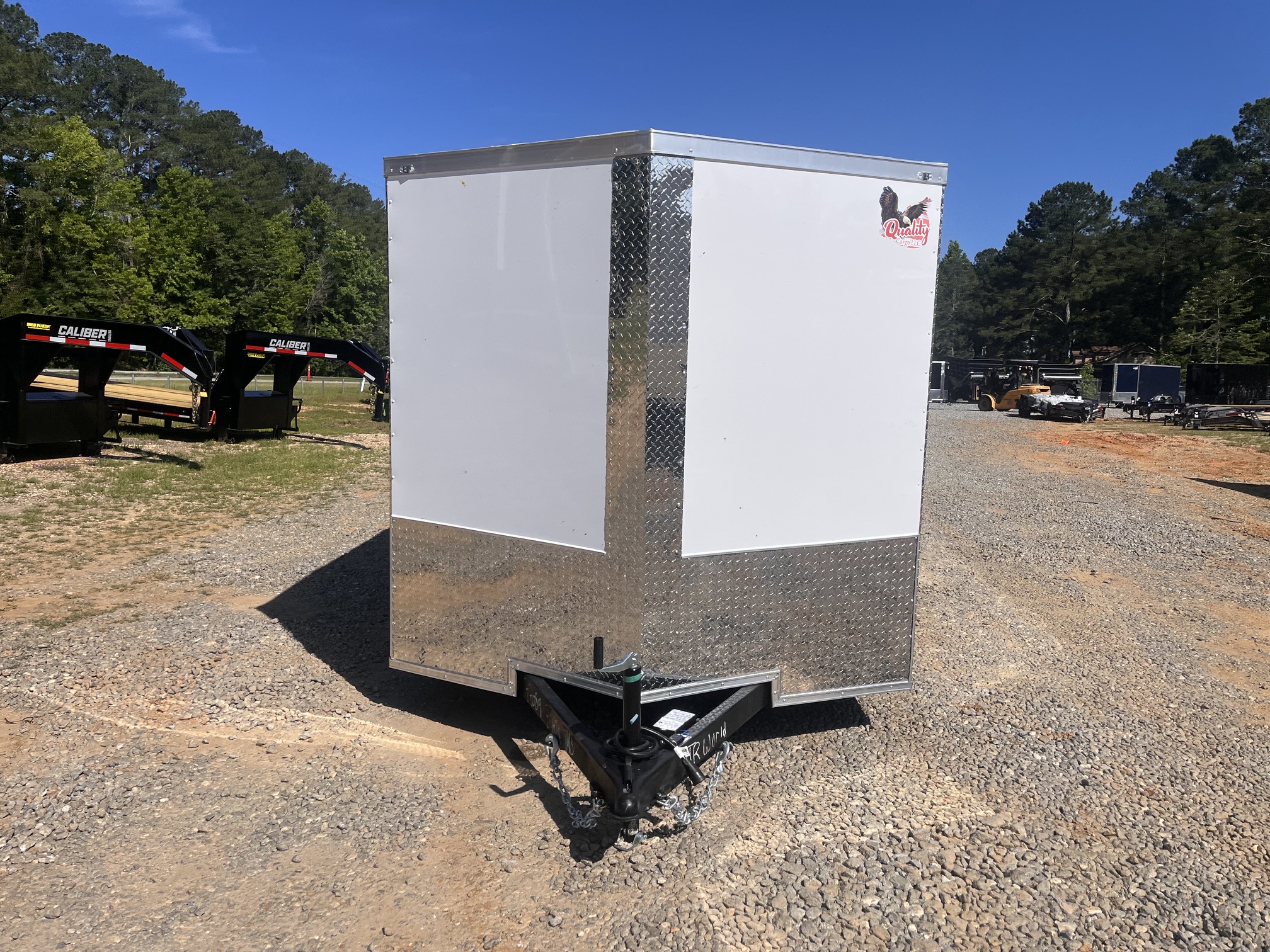

• Aerodynamic V-Nose & Front Armor:

  • Forward wedge V-nose profile designed to cut highway drag, increase tow-vehicle fuel economy, and expand usable interior front floor space.

  • Front protective armor includes vertical Aluminum Tread Plate (ATP) trim along the center wedge and an oversized 24″ front ATP stoneguard to deflect road gravel and kicked-up debris.

• Tandem 3.5K Running Gear & Low Step Height:

  • Dual 3,500 lb spring axles equipped with 4″ drop spindles for a low center of gravity, reduced highway sway, and easier roll-in ramp approach angles.

  • EZ-Lube hubs for simple, rapid bearing greasing without removing the hub assembly.

  • Commercial ST 15″ radial tires mounted on 5-lug Silver Mod steel wheels.

• Doors, Access & Hitch Hardware:

  • Rear Access: Available with a heavy-duty spring-assist rear ramp door for rolling equipment or double rear barn doors for forklift loading.

  • Side Entry: 32″ side entry door equipped with an RV-style flush lock for secure, rapid cabin entry.

  • Tongue & Coupler: 2-5/16″ A-frame ball coupler paired with a 2,000 lb A-frame tongue jack.

  • Electrical: Standard 7-way RV-style round pigtail harness and a 12V interior ceiling dome light.

Commercial tube construction, durable .080 skin, and upgraded 7’0″ interior height—ready to hook up today. Call today or swing by the lot to inspect it in person. Financing, lease-to-own, and delivery available.
