Trailers / 2025 Horizon Trailers FFT 102″x24′ 14k BP Flatdeck Tilt Trailer

Unit details

Here are the trailer specifications presented in plain text format:

WEIGHT RATINGS GVWR: 15,700 lbs

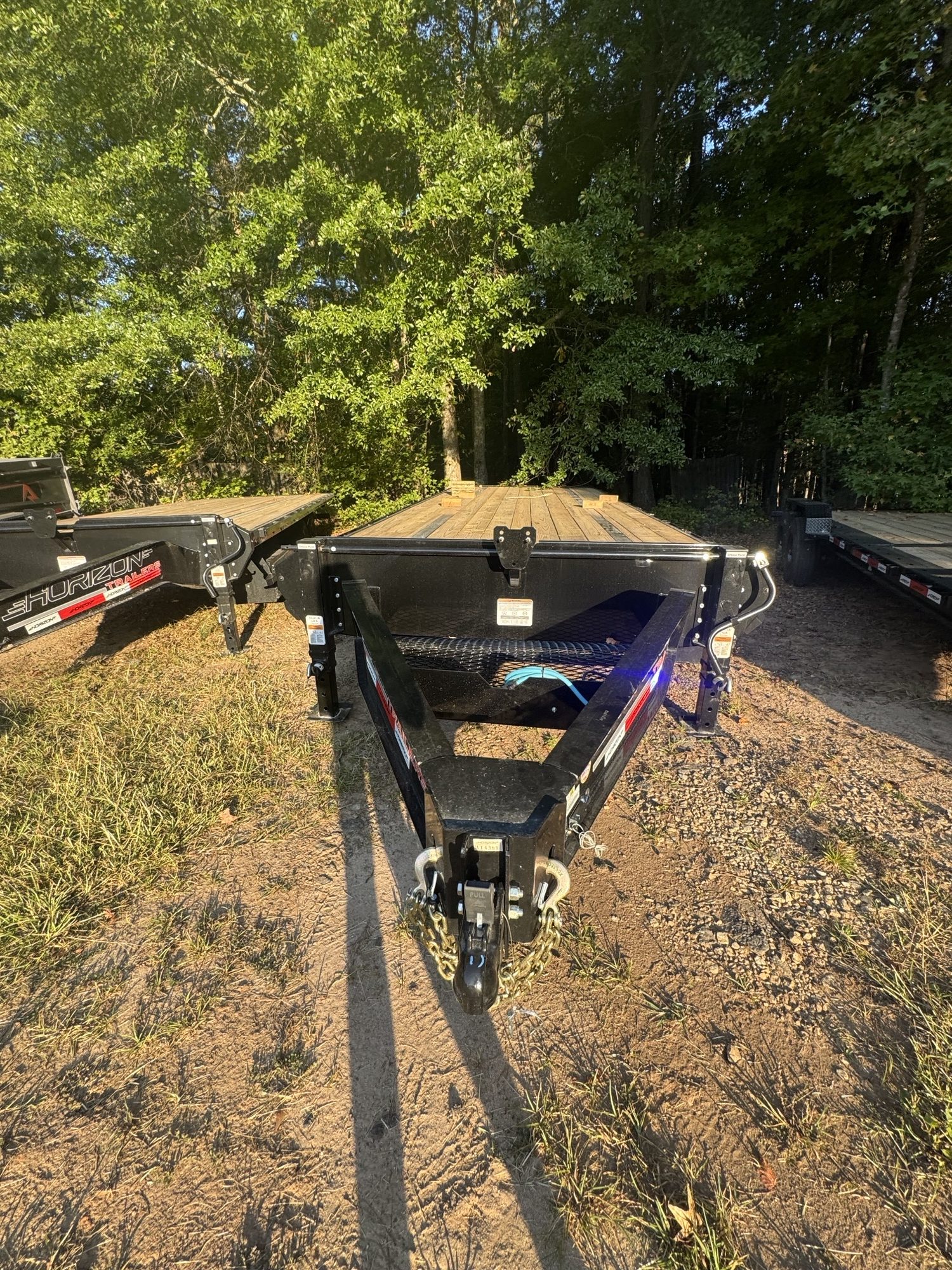

TONGUE TONGUE: Neckbox 10″ Engineered I-Beam TOOLBOX: Diamond Mesh Wire Floor Storage COUPLER: Adjustable Demco EZ Latch 2-5/16″ BP Coupler (21,000 lbs) JACKS: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs) SAFETY CHAINS: 3/8″ Grade 70 Safety Chain w/Clevis Hook (2 each) SPARE: Weld On Spare Tire Mount

CHASSIS MAIN FRAME: 12″ I-Beam (14 lbs/ft) SIDES: Slide In Side Step On Both Sides LEFT SIDE: Lockable Toolbox (Houses Batteries And Pump)

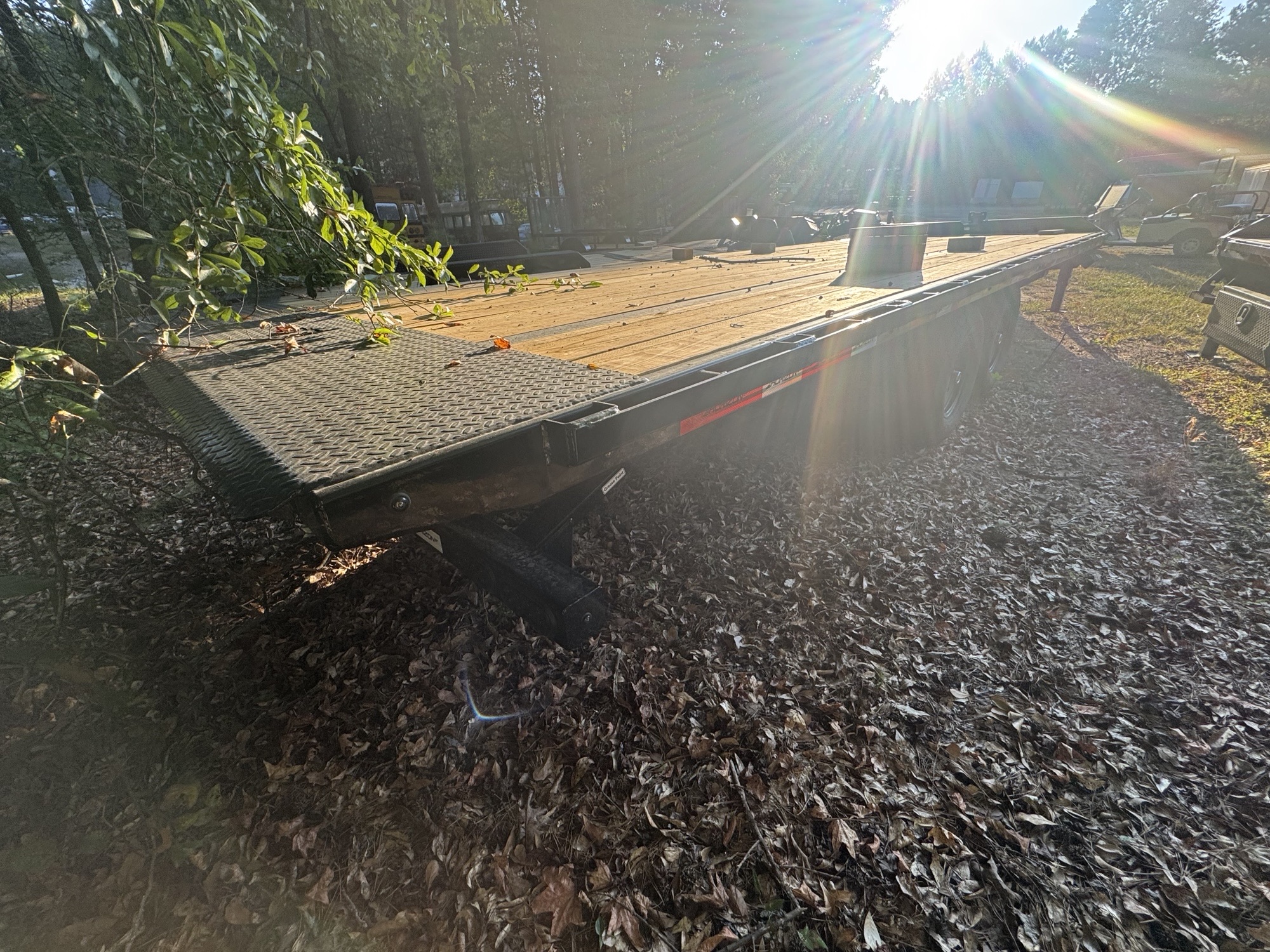

FULL TILT DECK DECK HEIGHT: 36″ FLOORING: Pine Lumber Floor FRAME: 2″ x 5″ x 11ga. Tubing Bed Frame CROSSMEMBERS: 3″ Channel (3.50 lbs/ft) 16″ Spacing SIDES: 1/8″ x 3.5/8″ (ID) Stake Pockets (Spaced At 24″) WINCH PLATE: Winch Plate On Deck

LIFT SYSTEM KTI 12V HYDRAULIC PUMP: 2 Button Hydraulic – Power Up / Power Down CONTROLLER: 14′ Control Cable REMOTE: Tuff Wireless 2 Button Remote LIFT CYLINDER: Hoist w/6″ x 21″ Single Push Cylinder (20,000 lbs) LIFT CAPACITY: 20,000 lbs When Weight Distributed Across Length Of Deck

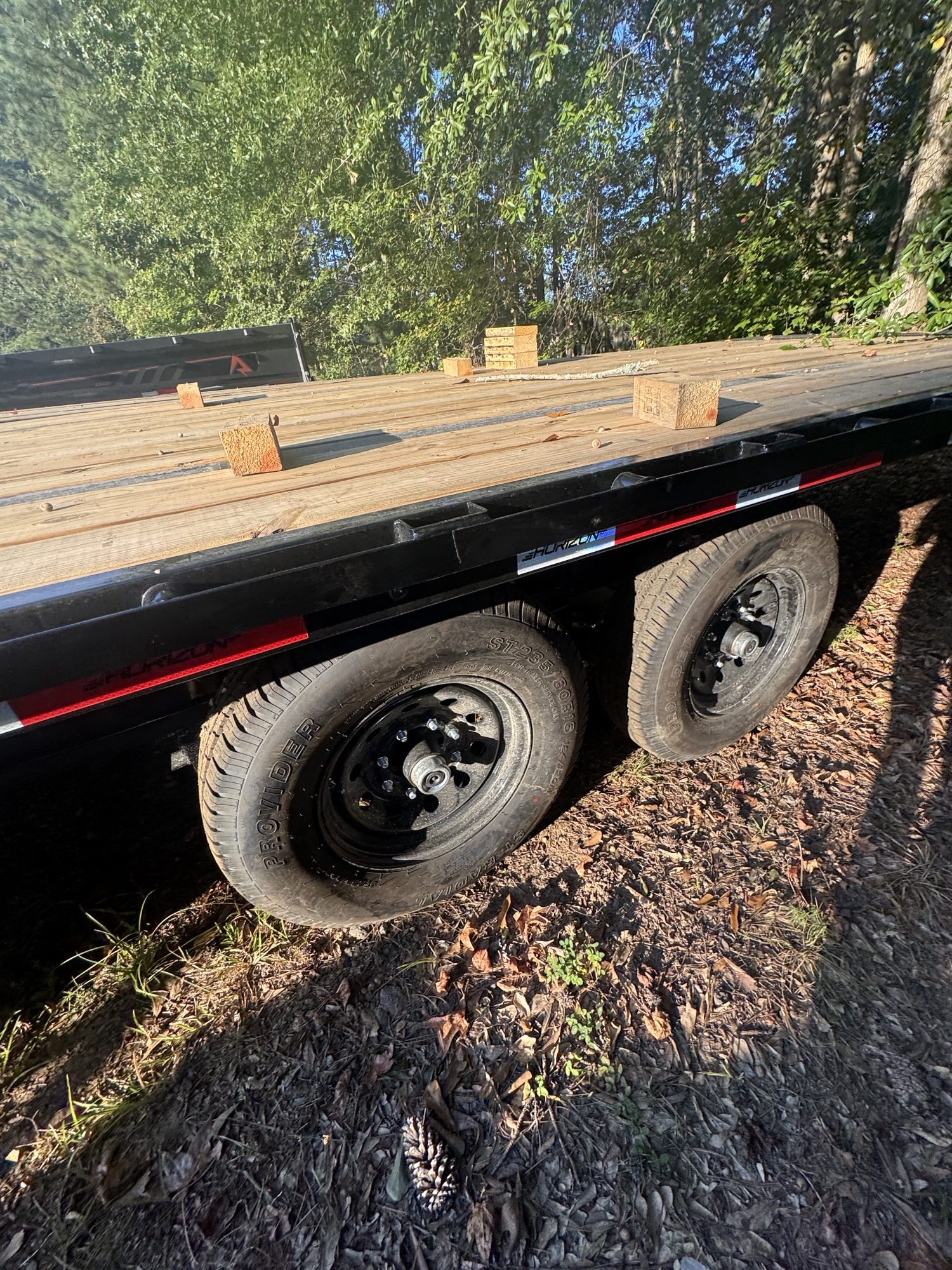

RUNNING GEAR TIRES: ST235/80R16 10 Ply Tires Single (3,520 lbs) RIMS: 16″ Black Mod Wheels AXLES: 2 – 7k Lippert Electric Brake EZ Lube Spring Axles SUSPENSION: Spring

ELECTRICAL AND LIGHTING LIGHTS: DOT Approved Tecniq LED Lights

FINISH PAINT: 6 Stage Powdercoat

Contact us for a complete list of features and available options for this stock number! Description may contain factory features and specifications which are not available and are subject to change.
